DR-60-12 PFB MW power supply 12V/4,5А
Price: 7 100.00 RUB.
Description

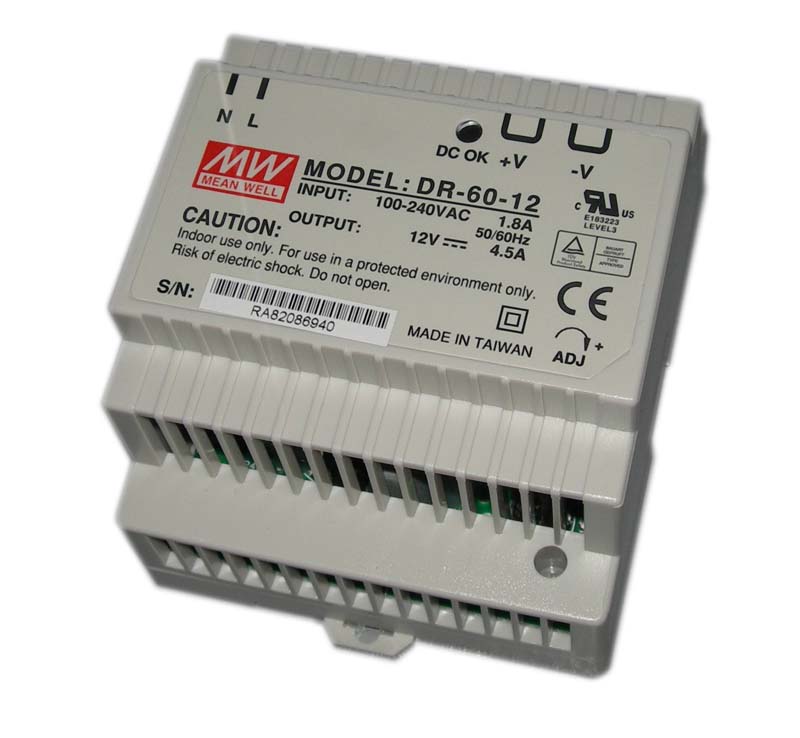

The power supply unit 12V/4.5 A DR-60-12 is designed to supply systems with a constant voltage of 12 V.
The DR-60-12 is made in a gray plastic housing designed for mounting on a DIN rail.
The power supply unit has a built-in protection system against short circuit, overload and overvoltage, it is possible to adjust the output voltage in the range of +10% U nom.
Technical specifications
| Input voltage, V | 220 |
| Input voltage, Current consumption at rated power, A | 1,8 |
| Output voltage, V | 12 |
| Rated output current, A | 4,5 |
| Weight, kg | 0,3 |
| Dimensions, mm | 78х93х56 |
