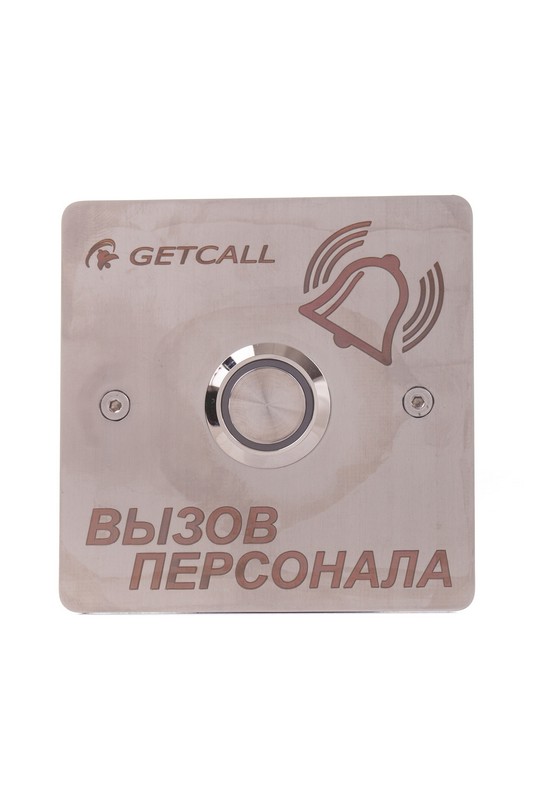

GC-0422B1 Wired Call button
Art.: GC-0422B1
Price: 8 640.00 RUB.
Description
The GC-0422B1 wired call button is used in the GetCall-IS ward alarm system and is designed to send a call signal to a nurse. Mortise design. Stainless steel case. The button is installed in bathrooms, bathrooms and next to the patient's bed. The call button is connected to the signal lamp GC-0611W2 ( GC-0611W3). Up to two call buttons are connected to the lamp in parallel.
The design provides for the possibility of fixing the device in a mortise way on a vertical surface. Thanks to the use of stainless steel, the device can be treated with any disinfectants.
Technical specifications:
- Supply voltage, V, no more than 12
- Current consumption, mA, no more than 2
- Protection group IP44
- Operating temperature range, °C from -30 to + 45
- Constructive mortise fastening
- Overall dimensions, mm 82x82x45
- Weight, 150 g
Service life, at least 5 years
Made in Russia.
3D View
