The MP-730W2 display Board provides redundancy of the busy status of up to 20 offices by commands from the MP-730W1 display Board, light and acoustic indication.

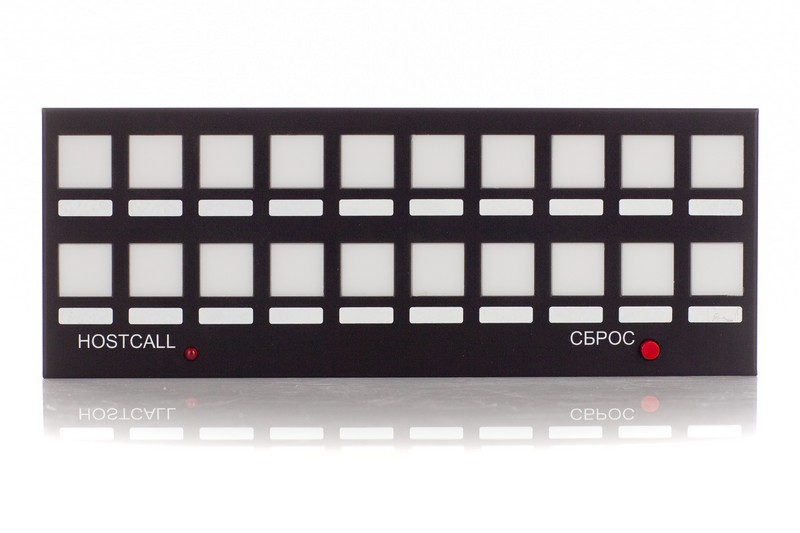

On the front panel of the case there are 20 segments with a 2-color led call indicator and a white field for the Cabinet number corresponding to 20 cabinets. In the lower right part of the MP-730W2 display tableau, there is a RESET button for temporary mute, and in the left – a power-on indicator. The design of the MP-730W2 display Board is designed for overhead mounting. The MP-730W2 display Board is powered by a 12V power supply. the distance from the display Board to the power supply must not exceed 5 m.

Technical parameters:

Number of loops 20
Light indication red/green, 20 control zones
There is an acoustic indication of the call
Power Supply ±12 V
Current consumption, no more than 0.24 A
Power consumption from the network, no more than 4 VA
Sound level, at least 57 DB
Constructive wall mounting
Dimensions 265x100x30 mm
Operating mode-indoors, at temperatures from +5°C to +45°C and humidity of no more than 80% at normal atmospheric pressure
Service life, at least 5 years
