The MP-331W1 tent console is designed to work as part of the equipment in the "HostCall-CMP"personnel call system. The MP-331W1 tent console can work as a tent console, or as a management console for staff communication devices.
The MR-331 tent console provides:
- receiving calls from digital buttons and intercom devices (up to 6 pieces);
- control of switching on the 3-color lamp;
- control of intercom devices - up to 6 pieces;
- transmission of information via the RS-485 interface bus to the central control panel;
-control of operation of up to 3 electromechanical, electromagnetic locks or electric locks.

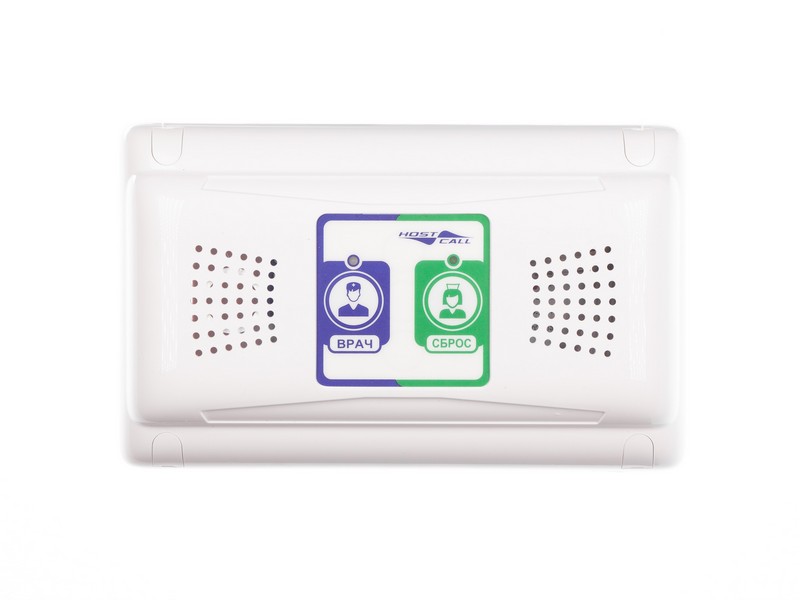

The ward console has a doctor call button on the front panel and a call presence/reset button. The console is equipped with an audible call confirmation signal from the button.
Technical specifications
The MP-331W1 tent console has the following technical characteristics:
| Supply voltage, V | ±12 ±10% |
| Current consumption: | |
| in standby mode when exchanging via RS-485 with the remote control, mA | 110 |
| with continuous illumination of any of the lamps, mA | 150 |
| peak,mA | 230 |
| Segments of the glow lamp | 1 |
| Mode of operation | around the clock |
| Operating temperature range, °C | +5÷45 |
| Relative humidity, % | no more than 80 |
| Atmospheric pressure, mmHg | from 650 to 800 |
| Constructive | wall-mounted tilt mount |
| Dimensions, mm | 165х101х29 |
| Weight, g | 150 |
| Service life, not less than | 5 лет |
