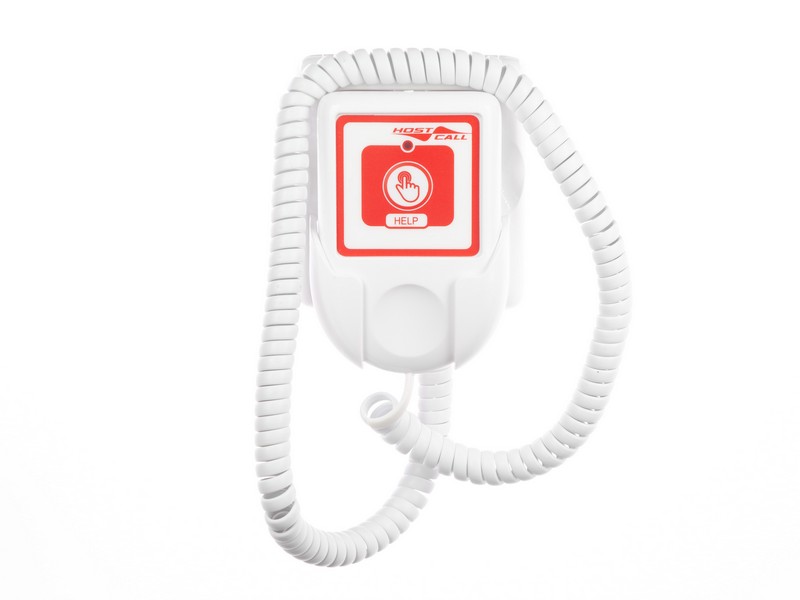

MP-432W1 Wired call button
Price: 0.00 RUB.
Description
The MP-432W1 wired digital call button is designed to work as part of various personnel call systems (hospital systems, personnel call systems for the disabled, etc.) and serves to send a call to the MP-331W1 tent console.The call is made by pressing the membrane key on the front panel of the button. The call is duplicated by a backlight built into the button body and an audible signal.
Technical specifications:
| Maximum current consumption, mA | 1 |
| Supply voltage, V | no more than 12 |
| Button number range | from 1 to 9 |
| Overall dimensions, mm | 80х108х34 |
| Mode of operation | around the clock |
| Operating temperature range, °C | +5÷45 |
| Relative humidity, % | no more than 80 |
| Atmospheric pressure, mmHg | from 650 to 800 |
| Service life, not less than | 5 years old |
3D View
