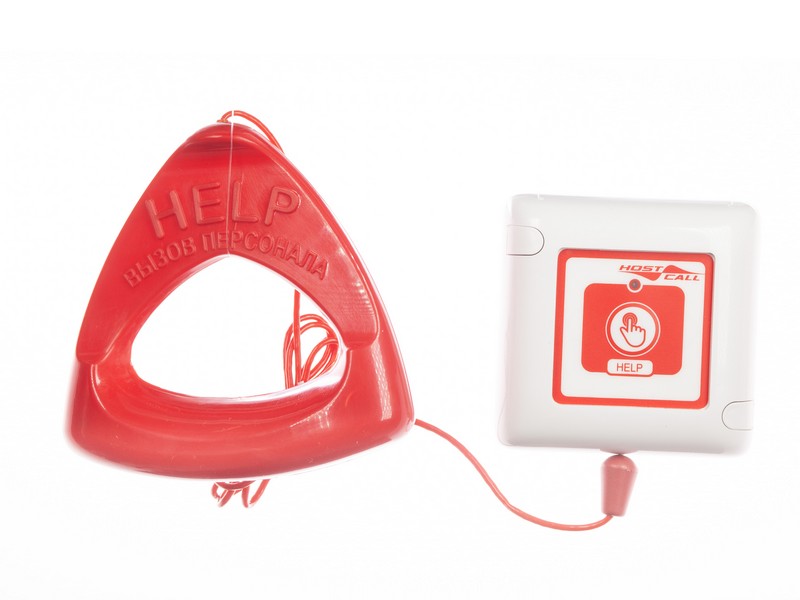

MP-433W1 Waterproof call button with a cord
Price: 5 680.00 RUB.
Description
Water-proof wired digital call button MP-433W1 with a cord is designed to call personnel from the bathroom room. The product is designed to work as part of various personnel call systems (hospital systems, personnel call systems for the disabled, etc.) The call can be made in 2 ways – either by pulling the cord, or by pressing the membrane key on the front panel of the button.
The original mechanical circuit of the call from the cord is simple and prevents moisture from entering the printed circuit board. The call is duplicated by a backlight built into the button body and an audible signal. For protection from moisture, the board is covered with varnish.
Technical specifications:
| Maximum current consumption, mA | 1 |
| Supply voltage, V | no more than 12 |
| Overall dimensions, mm | 82х82х18 |
| Cord length, m | 1,5 |
| Protection class | IP44 |
| Mode of operation | around the clock |
| Operating temperature range, °C | +5÷45 |
| Relative humidity, % | no more than 80 |
| Atmospheric pressure, mmHg | from 650 to 800 |
| Service life, not less than | 5 years old |
