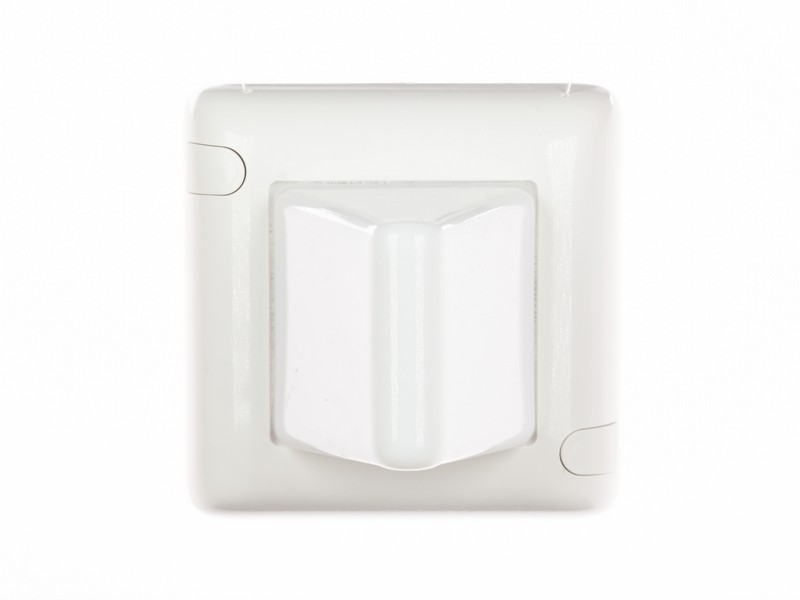

MP-211W1 Wireless controller with an embedded lamp.
Price: 0.00 RUB.
Description
Not produced
MP-211W1 wireless controller with an embedded lamp is designed to work as part of the equipment in the "HostCall-CMP"personnel call system. The MP-211W1 radio controller is designed for receiving calls from radio buttons in the ward (standard and emergency calls, doctor's call, presence of staff in the ward), controlling the inclusion of a 3-color lamp built into it, and transmitting information via the RS-485 interface bus.
Technical specifications
| Supply voltage | ±12 V ±10% |
| Operating frequency of the radio receiver, MHz | 433 |
| The range of radio, m, line of sight | before 20 |
| Current consumption: | |
| in standby mode when exchanging parcels with the remote control, мА | 16 |
| at continuous illumination of any of the lamps, мА | 30 |
| peak when you turn on, мА | 70 |
| Glow segments лампы | 1 |
| Light source | 3 led (red, blue and green) |
| Glow mode red, red flashing, blue flashing, green flashing | |
| Mode of operation | around the clock |
| Operating temperature range, °C | +5÷45 |
| Relative humidity, % | no more than 80 |
| Atmospheric pressure, mmHg | от 650 до 800 |
| Construct | wall-mounted tilt mount |
| Overall dimensions, mm | 82х82х64 |
| Weight, g | 150 |
| Service life, not less than | 5 years old |
3D View
