MP-413W1 Waterproof wireless call button with a cord
MP-413W1 Waterproof wireless call button with a cord


Price: 6 720.00 RUB.
Имеется в наличии:
Description

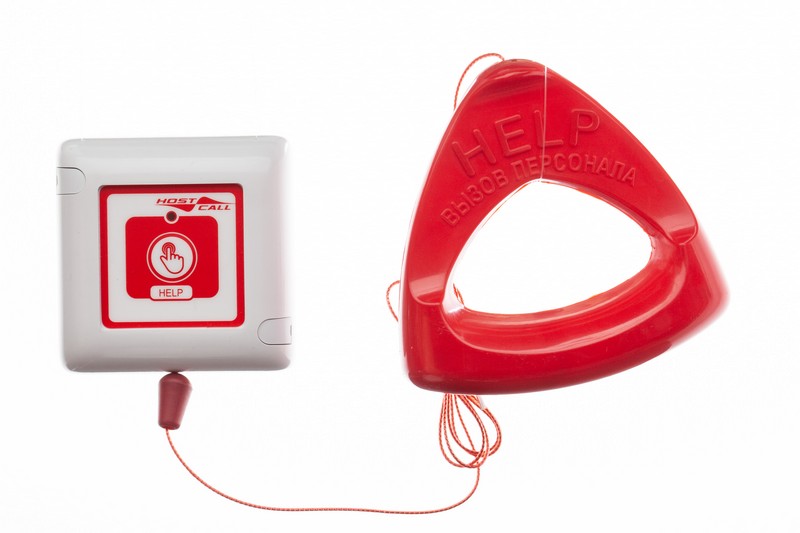

The MP-413W1 water-proof call button with a cord is designed for calling personnel from the bathroom room. The product is designed to work as part of various personnel call systems (hospital systems, personnel call systems for the disabled, etc.) and is used to send a call via radio channel to MP-821W1, MP-821W2 radios and MP-210W1, MP-211W2 radio controllers (with a built-in corridor lamp).

The call can be made in 2 ways – either by pulling the cord, or by pressing the membrane key on the front panel of the button. The original mechanical circuit of the call from the cord is simple and prevents moisture from entering the printed circuit board. On the front panel of the radio button there is an LED that provides an indication of the sending of a call and the discharge of the battery. The call is duplicated by a backlight built into the button body and an audible signal. For protection from moisture, the board is covered with varnish.

The MP-413W1 call radio button has an IP44 water-proof design. The MP413 W1 call radio button has a user-programmable code message (OOC modulation) and is designed to work with receivers and repeaters that support this type of encoding (see the receiver manual).

Technical specifications

Number of channels 1
Radio frequency, MHz 433
Signal output power, W 0,1
The duration of the battery life, months. (average) 4
Range, m 20
Battery voltage, V 12 (1 element 23A 12V)
System number range from 1 to 32
The range of rooms of the chamber (premises) from 1 to 32
Radio Adapter number range from 1 to 32
Protection Group IP44
Cord length, m 1
Dimensions, mm 82х82х18
Operating temperature, °C at a humidity of not more than 80% at normal atmospheric pressure from +5 to +45
Service life, not less than 5 years old



3D View
