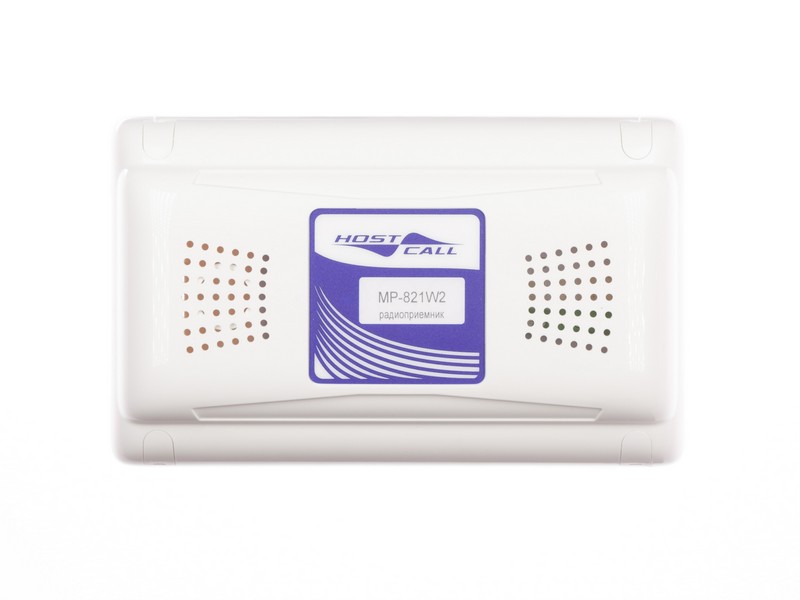

MP-821W2 4th channel receiver
Price: 7 130.00 RUB.
Description
The 4-channel receiver (hereinafter referred to as the receiver) MP-821W2 is designed to work in the "GetCall" and "HostCall" personnel call systems. In repeater mode, the MP-821W2, together with the MP-811 S1 radio transmitter, allows you to increase the transmission distance, for example, when using radio pagers or similar receivers.
There are 2 modes of operation of the MP-821W2 receiver:
- mode "Repeater" is designed to increase the range of receiving a call;
- mode "Receiver" is designed to receive calls from the radio buttons of the call.
Technical specifications:
| Supply voltage, V | ±12 ±10% |
| Radio frequency, MHz | 433 |
| Range, m | up to 20 |
| Current consumption max, A | 0,2 |
| Number of outputs | 4 |
| Maximum switching current, A | 0,5 |
| Maximum output voltage, V | 24 |
| Mode of operation | around the clock |
| Operating temperature range, °C | +5÷45 |
| Relative humidity, % | no more than 80 |
| Atmospheric pressure, mmHg | from 650 to 800 |
| Constructive | wall mounted overhead mount |
| Dimensions, mm | 165х101х29 |
| Weight, g | 150 |
| Service life | at least 5 years |
3D View
