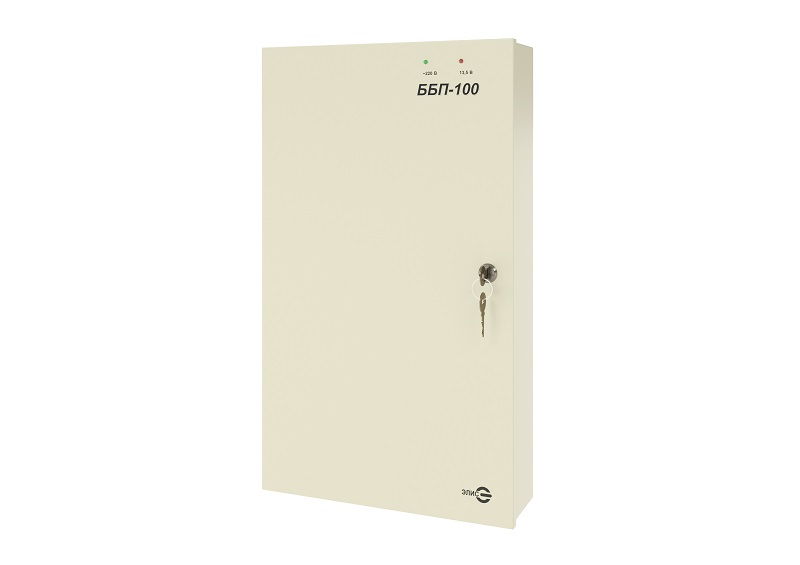

The uninterruptible power supply BBP-100 is designed for power supply of a wide range of radio-electronic equipment with a voltage of 12 V.

The unit belongs to the I class of protection against electric shock according to GOST 12.2.007.0-75, is designed for round-the-clock operation.

Designed for indoor installation. Main applications: access control systems, video surveillance and OPS.

Specifications:

• Automatic PWM output voltage stabilization;
• Short circuit and overload protection;
• The presence of protection against deep discharge of the battery and protection against reverse polarity of the battery;
• Thermal protection against overheating;
• Automatic switching to operation from the battery when the mains voltage is lost;
• Indication of the presence of voltage in the network and at the output of the power supply;
• High efficiency.

Operating conditions:

• Ambient temperature from +1°C to +35°C;
• Relative humidity up to 80% at a temperature of +25°C without condensation of moisture;
• AC power supply voltage ~ 160-265 V frequency 50 ±1 Hz;
• Power supply voltage from the built-in battery with a rated voltage of 12V and a capacity of 17/18Ah.

Technical specifications
