MP-433W8 Wired call button
Price: 10 450.00 RUB.
Description

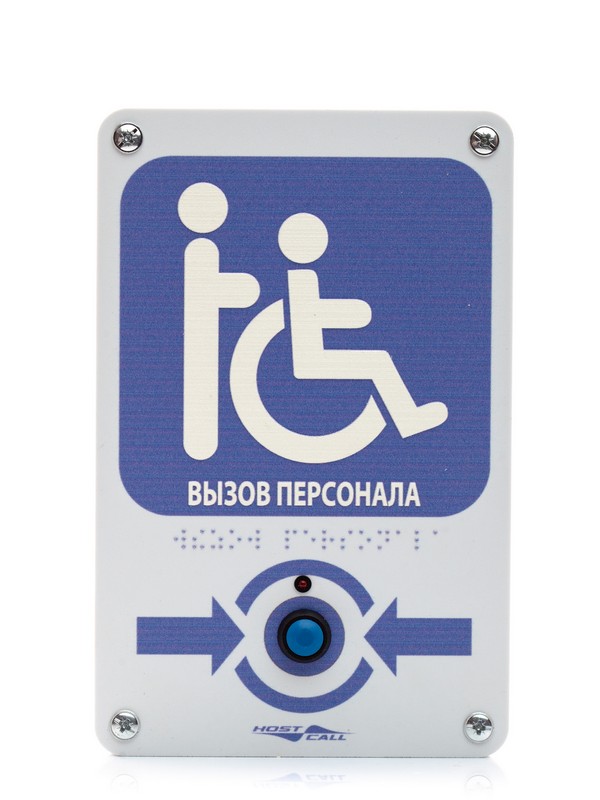

The MP-433W8 call button is made in the form of a rectangular tactile PVC plate with a pictogram and the inscription CALLING STAFF in normal font and Braille. The material of the housing provides dust and moisture resistance of the design, corresponding to the IP44 group. A blue water-resistant button is installed in the lower part of the case. An LED is installed on the case, which provides an indication of the sending of a call.
Technical specifications:
| Maximum current consumption, mA | 1 |
| Supply voltage, V | no more than 12 |
| Overall dimensions, mm | 135х210х20 (33 based on the height of the button) |
| Protection class | IP44 |
| Mode of operation | around the clock |
| Operating temperature range, °C | -20÷+45 |
| Relative humidity, % | no more than 80 |
| Atmospheric pressure, mmHg | from 650 to 800 |
| Service life, not less than | 5 years old |
