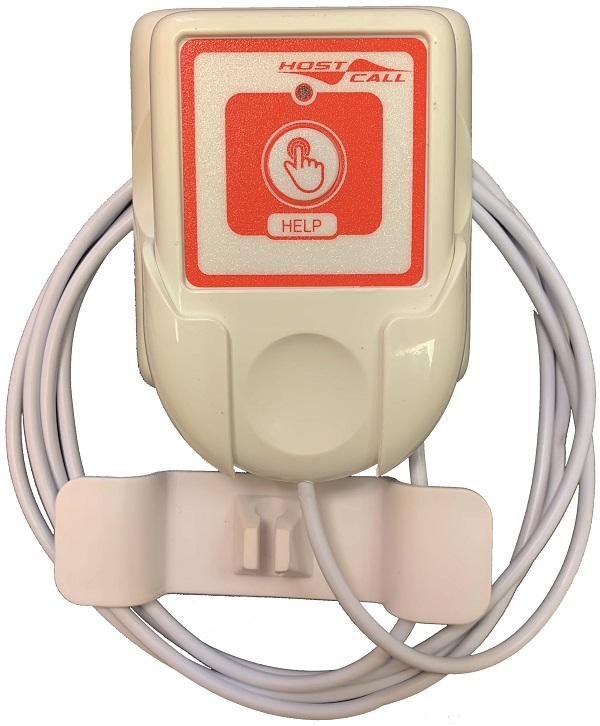

The MP-432W2 wired digital call button is designed to work as part of various personnel call systems (hospital systems, personnel call systems for the disabled, etc.) and serves to send a call to the MP-331W1 tent console.The call is made by pressing the membrane key on the front panel of the button. The call is duplicated by a backlight built into the button body and an audible signal.

Technical specifications:
Maximum current consumption, mA 1
Supply voltage, V no more than 12
Button number range from 1 to 9
Overall dimensions, mm 80х108х34
Mode of operation around the clock
Operating temperature range, °C +5÷45
Relative humidity, % no more than 80
Atmospheric pressure, mmHg from 650 to 800
Service life, not less than 5 years old
